Our water supply VFD control panel is an intelligent control device specifically tailored for water supply systems. Whether in residential areas, commercial buildings, or industrial factories, this panel ensures efficient and stable operation of the water supply system. Primarily, it regulates and controls water supply equipment, including water pumps, to maintain a consistent water pressure output.
 |
Overload Protection Function in VFD PLC Constant Pressure Water Supply Control Panel
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Juchuan |
Payment & Shipping Terms:
| Price: | $3,500.00 - $7,800.00/pieces |
|---|
|
Detail Information |
|||
| Communication Interface: | TCP RJ45 | Product Name: | VFD PLC Constant Pressure Water Supply Control Panel |
|---|---|---|---|
| Type: | PLC HMI Control Panel | Box/Cabinet Protection Grade: | IP55 |
| Quality: | 100% Tested Workable | Warranty: | 1 Year |
| Function: | Overload Protection, Failure Shutdown | Size: | 120*70*50cm |
| MOQ: | 1 Piece | Application: | INDUSTRIAL AUTOMATION |
| Package: | Standard Export Wooden Box With Pallet | Port: | Qingdao Port |
Product Description
Product Description
Product Name | VFD PLC Constant Pressure Water Supply Control Panel | Brand | Juchuan |
Model Number | JCK-004 | Origin | Qingdao, China |
Type | PLC HMI Control Cabinet/Panel | MOQ | 1 Piece |
Function | Start Stop, monitoring | Shell Protection Grade | IP55 |
Application | Water Treatment Industry, other industrial scenarios | Shell Material | Q235 Steel Plate |
Feature | Overload Protection, Failure Shutdown | Size | 220*80*60cm, customized |
Voltage | AC220V | Color | RAL7035 White |
Current | 8~180A | Transport Package | Standard Export Wooden Box with Pallet |
Output Frequency | 50Hz | Warranty | 12 months |
VFD PLC Constant Pressure Water Supply Control Panel
Multiple Pump Working Modes: The panel supports the configuration of various pump working modes, allowing for the operation of up to five pumps (1 frequency + 4 frequency). Pressure Measurement Anti-shake Compensation Control: Equipped with a pressure measurement anti-shake compensation control function, ensuring accurate pressure readings and stable operation. Password Lock and Protection: Parameter adjustment and setting are secured with password lock and protection functions, enhancing security and preventing unauthorized access. Analog Output Control: The D/A transmission control frequency voltage ranges from DC 0-10V and can be set to current DC 4-20mA, providing flexibility in control options. Pressure Sensor Compensation: Includes a pressure sensor zero point and full-scale compensation function, ensuring precise pressure measurements and control. Timing Automatic Pump Priming: Features a timing automatic pump priming function, facilitating efficient pump operation and system performance. Automatic Water Shortage Detection and Protection: Incorporates an automatic water shortage detection and protection function, as well as an external input shutdown protection function, ensuring system safety and reliability. Control of Small Attached Pump: Capable of controlling small pumps attached to the water supply, with options to set the frequency conversion or power frequency mode for optimal operation.

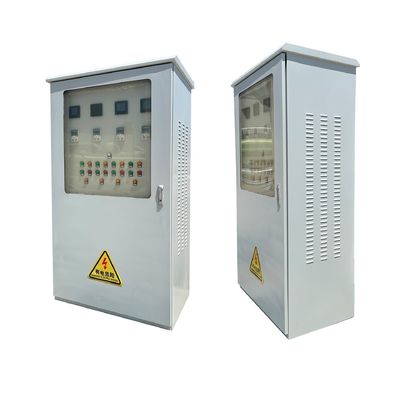

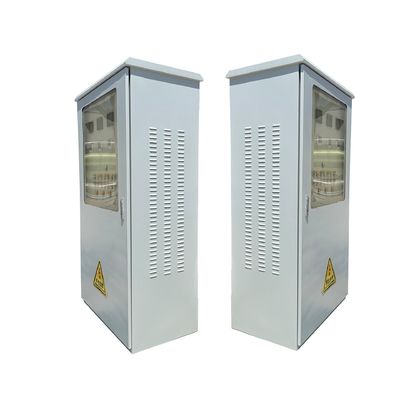

Details Images
Box/Cabinet: GGD 2200*800 *600（H*W*D） Series, Customized PLC: Siemens S7-1200/1500 Series Circuit Breaker: Schneider Electric IC65N Series VFD: ABB ACS510 Series Switching Power Supply: Siemens PSU Series Host Computer: Advantech Industrial Computer IPC-610L Monitor: DELL 24 Inches Operating System: Windows 10 Professional SCADA: WellinTech King SCADA
VFD motherboard
Precise routing and clear wiring
VFD full-function terminals
Related Products
PLC Control Panel for Raw Water Pumping Station
PLC Control Panel for Flocculation Precipitation
PLC Control Panel for V-type filter
Product Performance
Intelligent Control Function
Equipped with an advanced frequency conversion controller, the panel automatically adjusts the operating frequency and speed of the water pump based on real-time water pressure requirements. This ensures stable system operation and maintains a constant water pressure output.
Multiple Process Modes
The control panel supports various process modes, including constant voltage adjustment, timing adjustment, and manual control. Users can select the appropriate mode according to their specific needs, allowing for flexible adjustments in operations.
Remote Monitoring and Control Function
Users can monitor the system's operating status in real-time via network connection or wireless communication. Additionally, they can remotely adjust parameters and control water pump operations, facilitating remote intelligent management.
Comprehensive Protection Functions
The control panel features multiple protection functions, such as over-current protection, over-voltage protection, under-voltage protection, and short-circuit protection. These functions effectively safeguard water pumps and equipment from damage and failure.
Humanized Operation Interface
With an intuitive and user-friendly operation interface, including an HMI and operation buttons, the panel enables convenient parameter setting, operation monitoring, and fault diagnosis.
Widely Used
It is used in many fields, such as water supply for urban residents, water supply in fire extinguishing, industrial water treatment, agricultural irrigation.
Why Choose Us
High Expandability
It offers high expandability by supporting the integration of various sensor interfaces into traditional water supply units. Additionally, it facilitates the expansion of interfaces for video security, water quality monitoring, pump room environment monitoring, energy consumption monitoring, and other equipment.
Data Transmission
The panel supports the transmission of all monitoring data to the monitoring center through wired or wireless methods. Furthermore, it can receive supervisory system control signals, enabling seamless communication and control.
Quality Assurance
Through stable cooperation with high-quality component industry leaders, the control panel utilizes components from reputable manufacturer brands. This ensures reliability, performance consistency, and longevity of the equipment.
