Online Instruction Large Automatic Chemical Powder Dosing System for Water Treatment
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Price: | $7,500.00 - $12,000.00/sets |
|---|
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Manufacturing Plant, Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, PLC |
| Weight: | 300-3500kg | Size: | Different As Each Model |
| Power: | 6-15 | Warranty: | 1 Year |
| Productivity: | 10000L/Hour | Weight (KG): | 1000 Kg |
| Product Name: | Powder Dosing Device | Voltage: | 380V /Customized |
| Function: | Water Treatment Systerm | Control Mode: | Full Automatic Control |
| Material: | Q235/SS304 | Core Component: | Silo, Dissolving Tank, PLC |
| Inspection Report: | Provided | After-sales Service Mode: | Video Technical Support/ Online Instruction |
| Packing: | Wooden Case | Port: | Qingdao Port |
Product Description
Product Overview

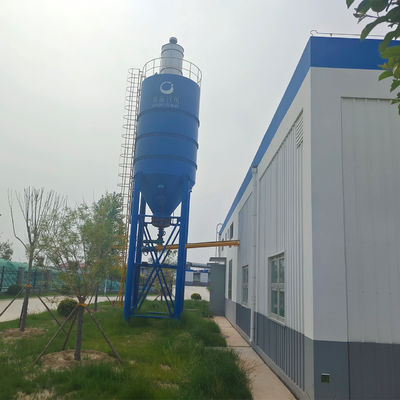

Large Powder Dosing Device
The powder dosing device is a set of independent and complete dosing device covering the processes of powder storage, dosing, dissolution, and metering. It overcomes various drawbacks such as insufficient manual dosing accuracy, powder scattering, and environmental pollution. It has stable performance, high dosing accuracy, fully automated operation and clean working environment, and saves a lot of manpower and material costs.
Product Performance
(1) It has a high degree of automation. With PLC control, it can operate and display the equipment operating status on the touch screen, and have an intuitive human-device interface, simple and convenient.
(2) The control system fully automatically doses solution. The powder dosage automatically follows the change of water flow, to ensure that the proportion of the configured solution is constant. It has two modes of fully automatic and manual control.
(3) The system is stable and reliable. After setting the dosage ratio, the equipment will configure the solution concentration according to the operating conditions. The process will run completely automatically. If there is a fault, the relevant equipment will automatically stop as required. The working status and fault information can be displayed on the touch screen and the central control room at the same time.
(4) Using the screw feeder to add powder well-distributed and dispersed.
(5) The overall sealing performance of the device is high, and the sealing performance improves the efficiency of powder unloading and the dosage metering level, and achieves the moisture-proof effect.
SIMILAR PRODUCTS
Product Paramenters
Types | Bunker size D*H*Lower hold D (m) | Feed screw size D*L (mm*m) | Solution tank size D*H (m) | Gross Power (kW) | Floor space (m) |
JCJ/H-10000L | 1.9*5.6*0.6 | 129*2.8 | 1*1.3 | 6 | 4.5*2 |
JCJ/H-20000L | 1.9*6.8*0.6 | 129*4.5 | 1.7*1.5 | 7 | 6.2*2.5 |
JCJ/H-30000L | 2.5*5.6*1.1 | 129*5 | 1.8*1.5 | 8 | 7.5*2.5 |
JCJ/H-40000L | 2.5*7.2*1.1 | 150*5 | 1.8*1.8 | 8 | 7.5*2.5 |
JCJ/H-50000L | 2.5*8.0*1.1 | 150*5.6 | 2*1.8 | 10 | 7.5*2.5 |
JCJ/H-60000L | 3.0*7.0*1.1 | 150*5.6 | 2*2 | 10 | 8.5*2.8 |
JCJ/H-70000L | 3.0*8.0*1.1 | 168*6 | 2*2 | 12 | 8.5*2.8 |
JCJ/H-80000L | 3.0*8.5*1.1 | 168*6 | 2*2 | 12 | 8.5*2.8 |
JCJ/H-100000L | 3.5*8.0*1.3 | 168*6 | 2.5*2.2 | 15 | 10*3 |
Applications
Widely used in water treatment, sewage treatment and other process media treatment in petroleum, chemical, paper, electric power, coal, pharmaceutical and food industries.
Product process principle
Process principle
The whole set comprehensively completes the discharge, storage, mechanical arch breaking, dry powder quantitative dosing, preparation of flowing liquid and pumping to dosing point. The bulk powder is unloaded by pneumatic powder pump, and the powder is stored in the storage silo, which is equipped with full and empty silo alarm device to avoid overloading or interruption of feeding. Mechanical arch-broken device is equipped to prevent the powder from caking, so that the powder can flow smoothly down to the quantitative screw conveyor. The powder is uniformly and quantitatively fed into the powder automatic slurry preparation system for mixing and configuration, and the prepared slurry is fed to the using point by the feeding screw pump.
Company Profile
FAQ
1.Q：Are you trading company or manufacturer? A: We are original equipment manufacturer, owning our own factory. 2.Q: Can you meet my special requirements for the product? A: Yes, we have a professional design team. We can provide foundation drawings upon your request. 3.Q: How do I find the suitable model? A: Please provide the agent type, preparation concentration and dosage, or click the“Contact” icon directly with us. We can help you choose the model.
4. Q: What is your production capacity? A: Production of 50 machines per month.
5.Q: What’s your terms of payments? A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better. 6.Q: How to install the equipment? A: We will provide you with detailed instructions and installation manuals. If necessary, we can send technicians to help you.
