Polymer Integrated Automatic Chemical Dosing System for Powder Dosing Control 20-250kg
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Price: | $3,500.00 - $9,900.00/sets |
|---|
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops, Other |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC |
| Weight: | 20-250kg | Size: | Different As Each Model |
| Power: | 0.1-5 | Warranty: | 1 Year |
| Productivity: | 10-2000L/Hour | Weight (KG): | 20 Kg |
| Product Name: | Integrated Polymer Dosing Device | Usage: | Water Treament |
| Function: | Auto Polymer Preparation | Advantage: | 24 Hours Automatic Running |
| Control Mode: | Full Automatic Control | Material: | UPVC/CPVC/PVDF |
| Inspection Report: | Provided | After-sales Service Mode: | Video Technical Support/ Online Instruction |
| Packing: | Wooden Case | Port: | Qingdao Port |
Product Description
Product Overview

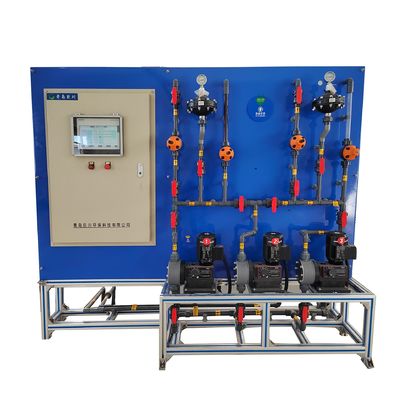

Integrated Polymer Dosing Device
The integrated polymer dosing device adopts the form of electromechanical integration structure, which can be divided into fixed and mobile (trolley type) in terms of installation, and each form of dosing device is equipped with a stirring system, dosing system and automatic control system. The integrated dosing device is a utility new device specially designed by our company for optimizing water treatment system, which can realize local control, remote automatic control, manual and automatic conversion dosing. It is used for dissolving and adding of polyacrylamide (PAM), polyaluminum chloride (PAC), potassium permanganate (KMnO4), sodium acetate, ferric chloride and other solid/liquid agents.
Products Description
(1) It has stable performance, low energy consumption, compact structure, beautiful appearance, small footprint and wide application range.
(2) Automatic operation, easy operation, simple maintenance, constant dosage, easy to adjust the dosage.
(3) Modular design of product structure, integrated combination, easy function expansion.
(4) The control system adopts imported devices of high quality brands, and the operation is safe and stable.
(5) Can be flexibly configured according to different water quality and different requirements of users.
(6) A variety of brands, materials, and grades of devices and components at home and abroad are available for users to choose.
SIMILAR PRODUCTS
Product Paramenters
Types | Productivity (L/h) | Mixing tank volume (m3) | Add pipe calibers (mm) | Power (kW) | Dimension L*W*H (m) | Weight (kg) | Number of pumps (set) |
JCJ/YT-10L | 10 | 0.5 | 15 | 0.1 | 0.7*0.3*1.3 | 20 | 2 |
JCJ/YT-50L | 100 | 1 | 15 | 0.5 | 1.0*0.4*1.68 | 50 | 2 |
JCJ/YT-100L | 100 | 3 | 20 | 1.0 | 1.0*0.4*1.68 | 110 | 2 |
JCJ/YT-500L | 500 | 5 | 25 | 1.5 | 1.5*0.5*1.7 | 180 | 2 |
JCJ/YT-1000L | 1000 | 10 | 32 | 3.0 | 1.8*0.6*1.8 | 200 | 2 |
JCJ/YT-2000L | 2000 | 20 | 32 | 3.0 | 1.5*0.6*1.8 | 250 | 2 |
Applications
Used in chemical, industrial, medical, municipal water supply, swimming pool, water plants, sewage treatment, industrial circulating water, industrial wastewater treatment, etc.
Product process principle
Process principle
The integrated dosing equipment adopts the process of solution dosing. After adding a certain proportion of liquid concentration to the storage tank, through the flow signal collection and under the automatic control of PLC, the solution is automatically measured by the precise metering system and transported to the processing system, and then through the mixing reaction to meet the processing requirements.
Company Profile
FAQ
1.Q：Are you trading company or manufacturer? A: We are original equipment manufacturer, owning our own factory. 2.Q: Can you meet my special requirements for the product? A: Yes, we have a professional design team. We can provide foundation drawings upon your request. 3.Q: How do I find the suitable model? A: Please provide the agent type, preparation concentration and dosage, or click the“Contact” icon directly with us. We can help you choose the model.
4. Q: What is your production capacity? A: Our factory covers an area of more than 10000m² and produces 100 machines per month..
5.Q: What’s your terms of payments? A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better. 6.Q: How to install the equipment? A: We will provide you with detailed instructions and installation manuals. If necessary, we can send technicians to help you.
