The reaction principle:
2NaClO3+4HCl→2ClO2+Cl2+2NaCl+2H2O
 |

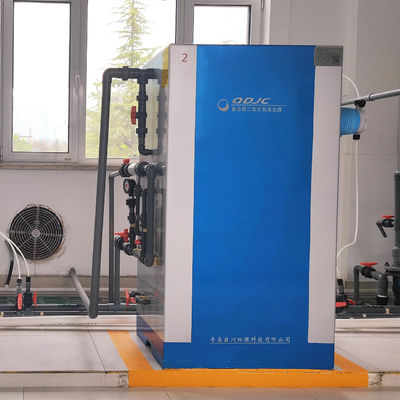

Upgrade Your Water Treatment with 1.1*0.58*0.45m Automatic Chlorine Dioxide Generator
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Juchuan |
Payment & Shipping Terms:
| Price: | $12,680.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Manufacturing Plant, Farms, Restaurant, Other |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, PLC |
| Size: | 1.1*0.58*0.45m | Power: | 1.0 |
| Warranty: | 1 Year | Productivity: | 100g/Hour |
| Weight (KG): | 80 Kg | Product Name: | JCF Chlorine Dioxide Generator |
| Working Temperature: | 5-40 | Inlet Pressure: | 0.2-0.6Mpa |
| Control Mode: | Automatic Control | Reactor Material: | Alloy |
| Packing: | Wooden Case Paking | ||
Product Description
JCF Chlorine Dioxide Generator
JCF chlorine dioxide generator consists of feeding system, reaction system, safety system, absorption system and control system. It uses sodium chlorate solution and hydrochloric acid to react to produce chlorine dioxide disinfectant, which has effective sterilization, disinfection, bleaching, deodorization, preservation and other functions, and used in water treatment, paper, food and other fields.
Widely used in the disinfection treatment of tap water, secondary water supply of high-rise building, swimming pool water and food processing water, the sterilization, algae killing, and deodorization treatment of circulating cooling water, as well as the purification and decolorization treatment of hospital sewage, printing and dyeing wastewater(textile wastewater) and other sewage.
High conversion rate
Efficient mixed flow mode, accurate dosage ratio and adequate reaction conditions make the conversion efficient and raw material conversion rate high, greatly reducing the waste of raw materials.
Stable and durable
The main components of the equipment are all imported from high-quality foreign brands, and the flow pipe fittings and the body are made of high-performance corrosion-resistant alloy materials, so that the life of the equipment can reach more than 8 years.
Low disinfection cost
The equipment uses a four-stage reactor, and truly realizes the push-flow reaction and negative pressure aeration technology. The efficient conversion rate reduces the amount of raw materials and lowers operating costs.
Easy installation
The cabinet-type installation, advanced process design and optimized reaction conditions reduce the volume of the device and save installation space.
High safety
The generator is equipped with explosion-proof plug and pressure relief valve to achieve double pressure relief safety. The equipment is equipped with lack of material insurance system and water pressure insurance system.
High degree of automation
The equipment can be controlled by touch screen human-machine interface. According to the incoming water flow, the equipment can automatically adjust the output of chlorine dioxide under the control of PLC. Equipped with water shortage and reagents reactant shortage alarm functions, which can realize automatic shutdown in case of breakdown.
Model Parameters | Rated output (g/h) | Dimension L*W*H（mm） | Weight (kg) | Tank size(m3) | Power (kW) |
JCF-100 | 100 | 1100*580*450 | 80 | 0.5 | 1.0 |
JCF-500 | 500 | 1100*580*450 | 100 | 1 | 1.0 |
JCF-1000 | 1000 | 1200*650*550 | 150 | 1 | 1.5 |
JCF-3000 | 3000 | 1200*650*550 | 200 | 3 | 3 |
JCF-5000 | 5000 | 1400*750*650 | 250 | 5 | 3 |
JCF-10000 | 10000 | 1700*900*700 | 300 | 10 | 4.5 |
JCF-20000 | 20000 | 2000*1200*750 | 400 | 20 | 6 |
Process principle
Chlorine dioxide generator adopts the chemical process of raw material reaction. Under the control of PLC, sodium chlorate solution and hydrochloric acid are automatically measured and transported through the precise metering system to the reaction system in the negative pressure environment. the mixed gas of chlorine dioxide and chlorine is produced through the negative pressure aeration reaction in the reaction environment of 60℃. The power water passes through the absorption system (water ejector part) to suck out the gas in the reactor to produce a mixed disinfectant solution of chlorine dioxide and chlorine at a certain concentration, which is then added to the water to be treated through the dosing pipeline.
1.Q：Are you trading company or manufacturer? A: We are original equipment manufacturer, owning our own factory. 2.Q: Can you meet my special requirements for the product? A: Yes, we have a professional design team. We can provide foundation drawings upon your request. 3.Q: How many days for the goods to arrive on the ship? A: It depends on the number of orders. Generally, delivery time is within 4 to 6 weeks. 4.Q: What’s your terms of payments? A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better. 5.Q: How to install the equipment? A: We will provide you with detailed instructions and installation manuals. If necessary, we can send technicians to help you.
